Fiberglass Chopped Strand Mat

Chopped strand mat is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, automotive, cooling towers, bathroom accessories, anti-corrosion pipes etc, suitable for hand lay up, filament winding, press molding forming processes.

WhatsApp Now

Chopped Strand Mat

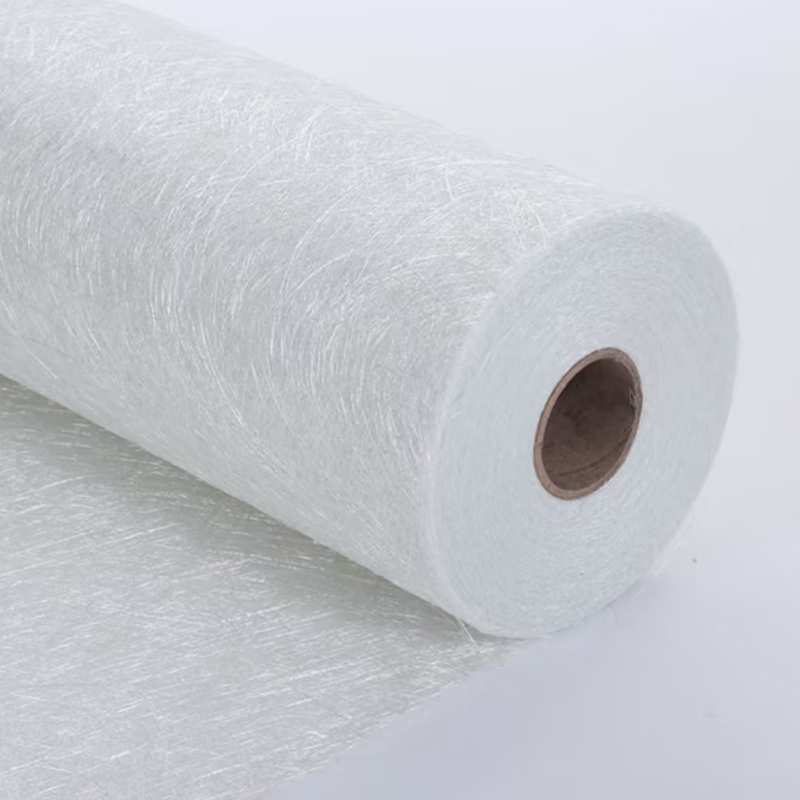

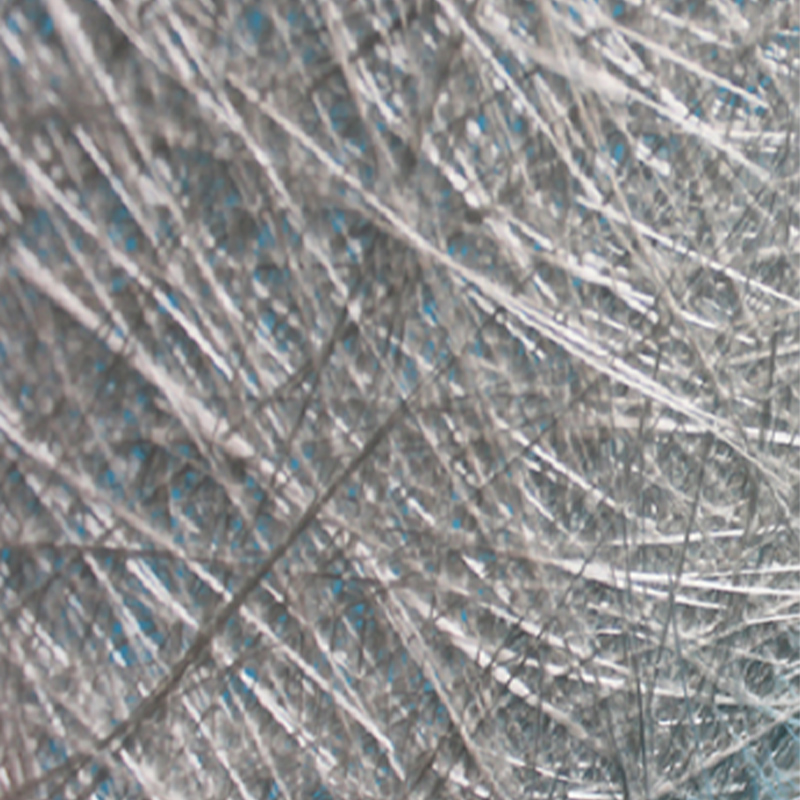

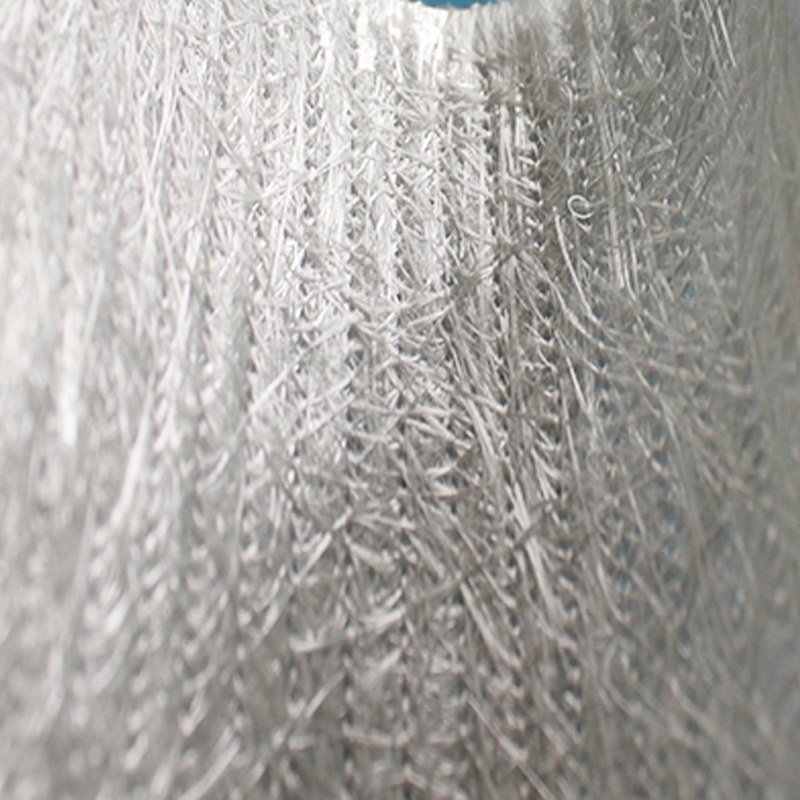

Chopped strand mat is made of fiberglass chopped strands bonded with powder or emulsion binder uniformly. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, automotive, cooling towers, bathroom accessories, anti-corrosion pipes etc, suitable for hand lay up, filament winding, press molding forming processes.

General Data

Code	Weight (g/m2)	Binder type	L.O.I	Moisture content	T. Strength (N)
Code	Weight (g/m2)	Binder type	L.O.I	Moisture content	Vertical	Horizontal
PLM100	100	Powder/Emulsion	4.0-12.0	≤0.2	≥80	≥80
PLM120	120	Powder/Emulsion	4.0-12.0	≤0.2	≥80	≥80
PLM150	150	Powder/Emulsion	4.0-12.0	≤0.2	≥100	≥100
PLM200	200	Powder/Emulsion	4.0-12.0	≤0.2	≥100	≥100
PLM225	225	Powder/Emulsion	2.0-8.0	≤0.2	≥100	≥100
PLM300	300	Powder/Emulsion	2.0-8.0	≤0.2	≥120	≥120
PLM380	380	Powder/Emulsion	2.0-8.0	≤0.2	≥120	≥120
PLM450	450	Powder/Emulsion	2.0-8.0	≤0.2	≥150	≥150
PLM600	600	Powder/Emulsion	2.0-8.0	≤0.2	≥150	≥150

Instructions for Use and Storage Conditions

Roll width: Standard width in 1040mm, 1270mm, and other sizes depends on customer’s real needs, available in 200mm to 3200mm.

Packing: Fiberglass chopped strand mat is usually rolled in a paper tube with inner diameter 76mm. The roll is warped with plastic film, then put into carton. Lay the rolls horizontally, and can be loaded on pallets and bulk in container.

Storage: The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15℃ to 35℃ and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.

Glassfiber Chopped Strand Mat

It is a non-woven E or Glassfiber met product manufactured by spreading continous filament roving of 50mm in length randomly and uniformly in combination with polyester binder in powder from (or other bihder in emulsion form).

It is characterized by good combination of resin, easy operation .good wet strength retension .good laminate transparency and low cost. It is suitable for the applications by hand lay-up FRP mouldings, such as: various sheets and panels, boat hulls, bath tubs, cooling towers, corrosion resistant, vehicles etc.

Specifications

Specifications	Weight g/m*	Breaking Strength N/150mm	Package Weight kg	Binder Content %
E 250 -1040 C 250 -3200	250	30	30 60	2-6
E 300 -1040 C 300 -3200	300	40	30 60	2-6
E 450 -1040 C 450 -3200	450	60	30 60	2-6
E 600 -1040 C 600 -3200	600	80	30 60	2-6

E-Glass Multi End Roving For Making Chopped Strand Mat

E-glass multi end roving for making chopped strand mat is specially designed multi end roving used for powder and emulsion chopped strand mat, it has suitable rigidity,good chopped and dispersion performance, good static resistance , good resin impregnation etc. good compatibility with the unsaturated polyester resin, it can also be used by cutting as the chopped strands for making stitched bonded mats.

Data Sheet

Model No.	Rated Size Tex	Deviation %	Moisture Content %	Sizing Content %	Dispersion Rate %	Rigidity mm
ER2400-T622	2400	±6	W0. 2	0. 5±0. 2		110±20

Remark: above parameters can be regulated according to the customer's request.

Instructions for Use and Storage Conditions

This product is packed in pallets, every single roll is in a shrinkage polybag, 3-4 layers for each carton, or 48-64 rolls/each carton.

The product should be stored in the dry and open environment to prevent wetting out and also should be packed completely.
The best storage temperature is 5-35°C, moisture degree is 35-65%, this product is better to be used up in 12 months.

Maximum two layers of pallets is allowed vertically stacked if the storage space limited.
