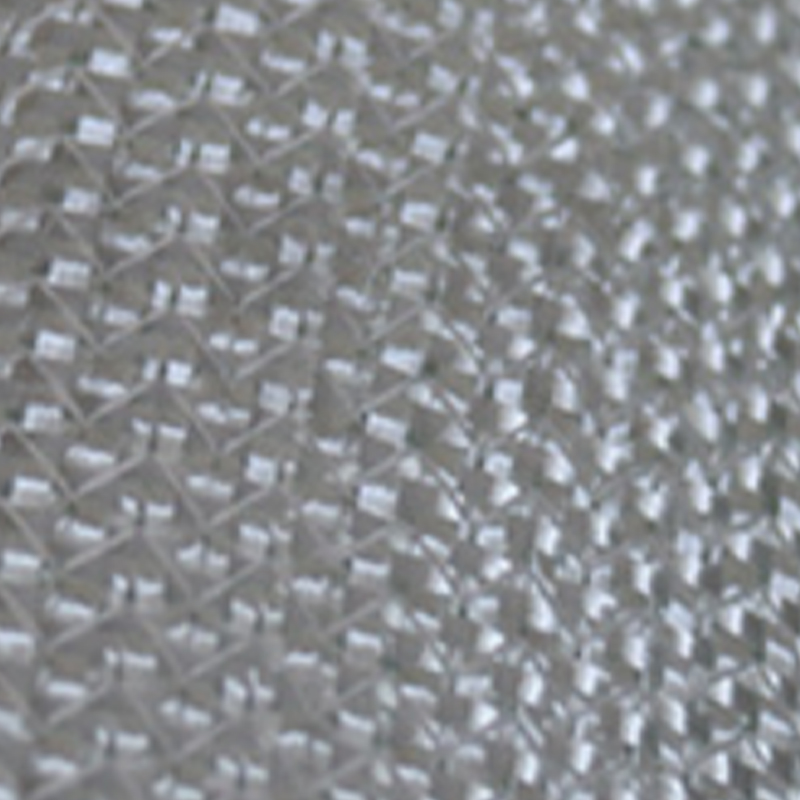

E-Glass (alkali-free glass fiber) is the most widely used general-purpose glass fiber reinforcement substrate in the composites industry. It is manufactured from borosilicate glass with an alkali metal oxide content of less than 1%. Available in forms such as direct roving, chopped strand mat, woven roving, surfacing tissue, and chopped strands, it is commonly paired with unsaturated polyester, vinyl ester, Bisphenol-A epoxy, and Bisphenol-A polyester resins. It serves as a structural reinforcement to enhance the overall strength of products such as storage tanks, electrolytic cells, FRP (fiber-reinforced plastic) piping, SMC/BMC molding compounds, resin buttons, and anti-corrosion equipment.

WhatsApp Now

E-Glass Multi End Roving For SMC

E-glass multi end roving for smc is suitable for reinforcement of up resin, improving the cutting performance of final products, good dispersion and good fluid in the resin, lower fuss, fast impregnation, low static electricity, it can be used for making various kinds of auto parts such as bumper, trunk, door etc. for the building materials field, it can be also used for making smc door, smc chair, sanitary ware, water tank, ceiling etc. for electric field, it can also be used for various kinds of electric parts and electric meters etc.

Data Sheet

Model	Rated Size Tex	Deviation %	Moisture Content %	Sizing Content %	Rigidity mm
PLM2400-T717	2400	±6	W0.10	1.4±0.2	160±20
PLM4800-T717	4800	±6	W0.10	1.4±0.2	160±20

Remark: above parameters can be regulated according to the customer's request.

Instructions for Use and Storage Conditions

This product is packed in pallets, every single roll is in a shrinkage polybag, 3-4 layers for each carton, or 48-64 rolls/each carton.

The product should be stored in the dry and open environment to prevent wetting out and also should be packed completely.
The best storage temperature is 5-35°C, moisture degree is 35-65%, this product is better to be used up in 12 months.

Maximum two layers of pallets is allowed vertically stacked if the storage space is limited.

E-Glass Direct Roving

E-glass direct roving is made by advanced tank furnace through high temperature pulling and formed in one procedure, it is used for reinforcement of unsaturated polyester resin, vinyl ester resin, epoxy resin etc. it is also with good weaving performance, it can also be used for various kinds of frp products, it can also be used for pultrusion and filament winding.

Data Sheet

Model No.	Rated Size Tex	Deviation %	Moisture Content %	Sizing Content %	Strength N/tex
PLM300-T208	300	±5	W0.2	0.55±0.2	NO.35
PLM600-T208	600	±5	W0.2	0.55±0.2	NO.35
PLM900-T208	900	±5	W0.2	0.55±0.2	NO.35
PLM1200-T208	1200	±5	W0.2	0.55±0.2	NO.35
PLM1500-T208	1500	±5	W0.2	0.55±0.2	NO.35
PLM2400-T208	2400	±5	W0.2	0.55±0.2	NO.35

Remark: above parameters can be regulated according to the customer's request.

Instructions for Use and Storage Conditions

This product is packed in pallets, every single roll is in a shrinkage polybag, 3-4 layers for each carton, or 48-64 rolls/each carton.

Maximum two layers of pallets is allowed vertically stacked if the storage space limited.

E-Glass High Strength Water Cut Chopped Strand

E-glass high strength water cut chopped strand is suitable for making non woven fibreglass felt(wetting method), polyester cloth etc.

This product is made by off line cutting and coated by special sizing.

This product is easily to be distributed in the plain water and has good compatibility with emulsion binder, the finished product is with high strength.
