You need materials that are strong and flexible. You also want to save money. Unsaturated polyester resins are special. They can handle hard hits well. They work great in tough places. They do not break down easily from chemicals. These benefits are clear in the numbers. People will use more of these resins each year. The rate will be 3.4% every year. By 2036, the market will be worth $17.33 billion. Companies like Changzhou Polymer Composite Materials Co., Ltd give good quality. They also offer new ideas. These help you finish your projects with confidence.
Key Takeaways
Unsaturated polyester resins are strong and flexible. This makes them great for tough jobs in cars and boats. These resins can handle heat and chemicals. They last a long time in rough places. This helps save money on repairs. Using unsaturated polyester resins can also lower costs. They do not need much energy to harden. This saves money on materials and energy. Polyester resins can be used in many ways. They let people make things in different ways. This helps make products for special needs. Picking low-VOC polyester resins keeps the air cleaner at work. It also helps the environment and supports green practices.
Superior Properties of Unsaturated Polyester Resins
Mechanical Strength and Flexibility
You want materials that stay strong under pressure. Polyester resin helps with this. Unsaturated polyester resins are both strong and bendy. They do not break easily when you bend them. This is why many industries use them. They mix strength with flexibility.
Here is a table that shows how polyester resin compares to other common resins:
Resin Type | Tensile Strength | Flexural Modulus | Heat Distortion Temp | Elongation at Break |
|---|---|---|---|---|
Unsaturated Polyester | 40–90 MPa | 2.5–4.0 GPa | 60–120°C | 1–3% |
Vinyl Ester | 70–90 MPa | 3.0–3.5 GPa | 100–150°C | 3–6% |
Epoxy | 55–130 MPa | 2.5–5.0 GPa | 120–200°C+ | 2–8% |
Polyester resin gives a good mix of strength and flexibility. If you add fiberglass or other reinforcements, it gets even better. This makes it great for building things that need to be strong but not heavy.
The way polyester resin works depends on:
How much crosslinking happens when it cures
What kind and how much filler you use
The type of fiber reinforcement you add
When you put glass fibers in polyester resin, you get composites that hold heavy things. These composites are strong when you pull or bend them. People use them in bridges, boats, and cars. They also do not crack easily if they get hit.
Corrosion and Heat Resistance
Polyester resin does not get damaged by chemicals or heat. This makes it good for hard jobs in boats, buildings, and cars. You do not have to worry about rust or saltwater damage with unsaturated polyester resins.

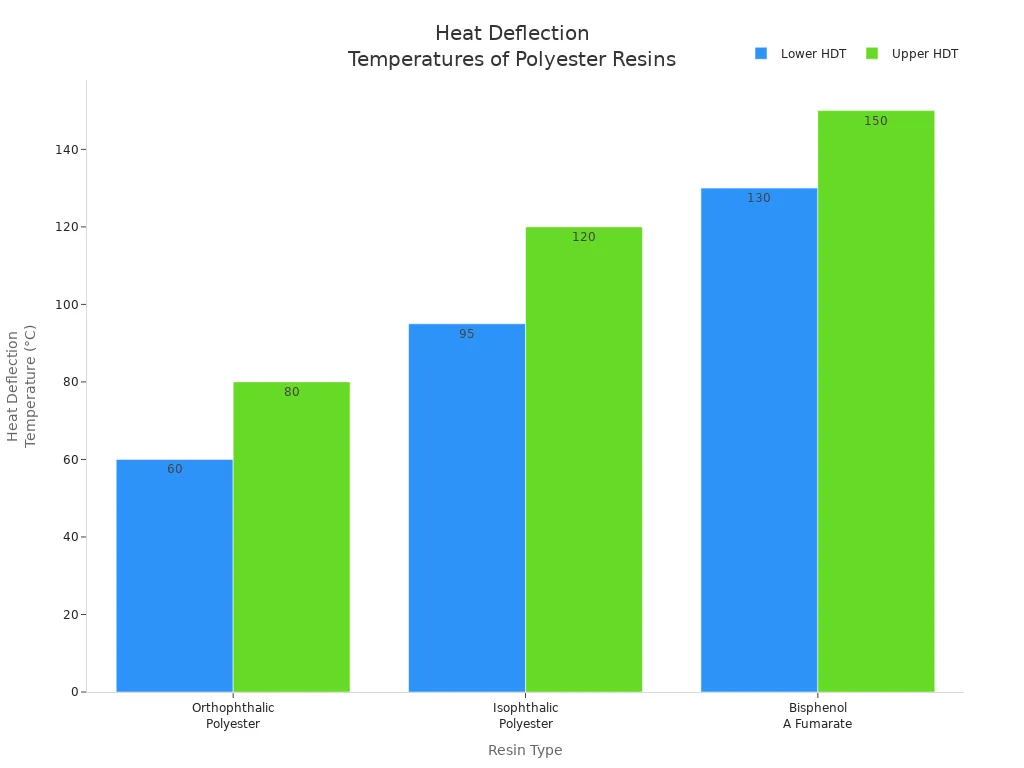

Let’s look at how different types of polyester resin handle heat:
Resin Type | Heat Deflection Temperature (HDT) | Continuous Service Temperature |
|---|---|---|
Orthophthalic Polyester | 60–80°C | 20–40°C below HDT |
Isophthalic Polyester | 95–120°C | 20–40°C below HDT |
Bisphenol A Fumarate | 130–150°C | 20–40°C below HDT |
You can use polyester resin where it gets very hot. Some types can take heat up to 150°C before they get soft. Even if you add natural fillers like lignin, the resin stays strong in heat. This means polyester resin works well in hot and tough places.
Longevity in Harsh Environments
You want materials that last a long time outside. Unsaturated polyester resins are good for this. They do not break down from sun, water, or chemicals. Research shows these resins stay strong in heat and do not get ruined by solvents. This is important for boats, cars, and things used outdoors. Polyester resin can even fix small cracks by itself, so your things last longer.
Changzhou Polymer Composite Materials Co., Ltd uses new research and strict ISO rules to make sure every batch is good. Here is how ISO standards help:
Standard | Contribution to Performance |
|---|---|
SIST EN ISO 14530-3:2000 | Sets rules for how polyester resin should be, so you get the same quality each time. |
ISO 3673-1 | Gives clear ways to test, so you can compare batches and trust the results. |
Tip: If you buy polyester resin from a trusted company, you know it will work well for your project.
You can trust unsaturated polyester resins to stay strong and safe, even in hard places. This is why people pick them for big jobs in boats, buildings, and cars.
Cost and Process Advantages
Material and Production Savings
You want your project to cost less. Polyester resin helps you save money. Unsaturated polyester resin is cheaper than other choices. Check this table to see how it compares to vinyl ester resin:
Feature | Unsaturated Polyester Resin | Vinyl Ester Resin |
|---|---|---|
Price | Cost-effective | Higher (approx. 30% to 60% more expensive) |
Polyester resin saves you money in more ways. You pay less for the materials you need. You also do not spend much on repairs later. Products made with polyester resin last longer and need less fixing. The resin hardens at medium heat, so you use less energy. Lighter parts mean you pay less to move and handle them. Here is a quick look:
Benefit | Description |
|---|---|
Lower Raw Material Costs | Unsaturated polyester resins are more economical compared to high-performance resins, reducing production expenses. |
Reduced Maintenance Expenses | Products made from this resin require less maintenance due to their strong resistance to chemicals and corrosion. |
Energy-Efficient Manufacturing | Moderate curing temperature leads to lower energy consumption during production. |
Lightweight Structures | Reduces transportation stress and handling damage, lowering operational costs throughout the lifecycle. |
Easy Processing and Fast Curing
Polyester resin is simple to use in many ways. You can pick Filament Winding, Pultrusion, or Hand Lay-up. These ways help you shape the resin for what you need. The resin hardens fast, so you finish work quickly. The table below shows how different catalysts change gel time:

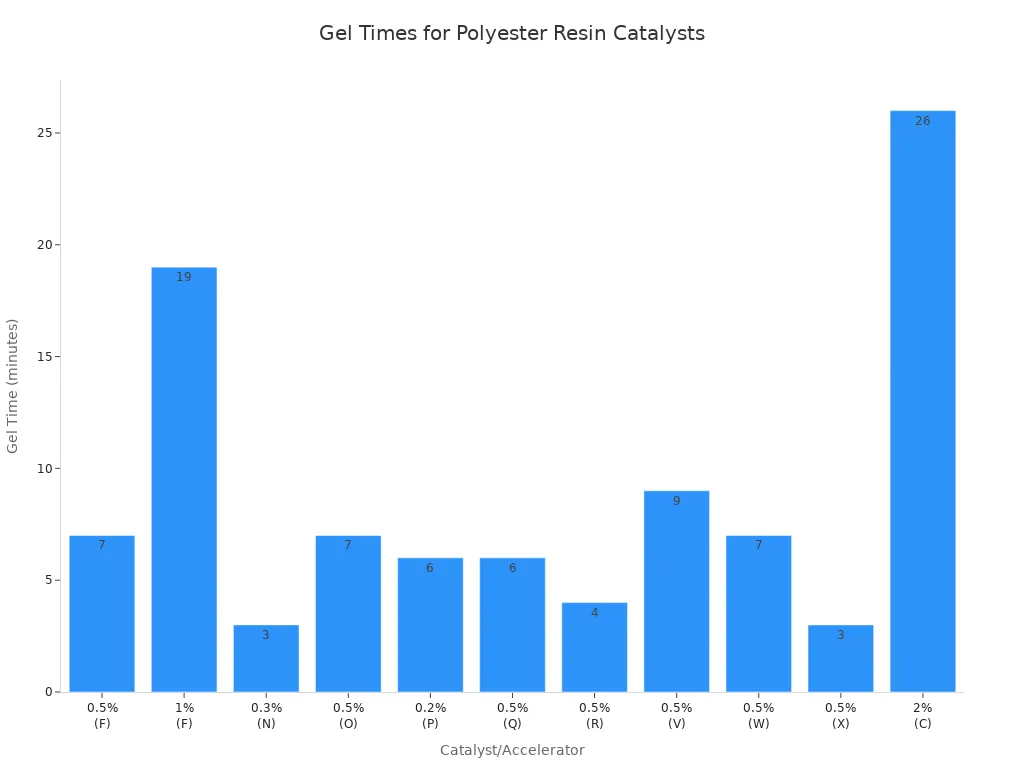

Catalyst/Accelerator | Gel Time (minutes) | Time of Exotherm (minutes) |
|---|---|---|
0.5% (F) | 7 | 2 |
1% (F) | 19 | 36 |
0.3% (N) | 3 | 24 |
0.5% (O) | 7 | ? |
0.2% (P) | 6 | ? |
0.5% (Q) | 6 | ? |
0.5% (R) | 4 | ? |
0.5% (V) | 9 | ? |
0.5% (W) | 7 | ? |
0.5% (X) | 3 | 7 |
2% (C) | 26 | 55 |
You can make the resin harden faster or slower by changing the catalyst. This helps you finish work on time and keep things moving.
Efficiency for Large-Scale Projects
Polyester resin is good for big building jobs. It protects against weather, scratches, and chemicals for a long time. The resin has low-VOC, so it is better for the environment. Many builders now use polyester instead of other materials. This helps you work better and make strong things.
You can use polyester resin in many building ways.
By 2025, about 36.8% of all unsaturated polyester resin will be used in construction.
The resin helps you build strong things with less waste.
Tip: If you pick polyester resin, you get a material that is easy to use, saves money, and works well for big projects.
Versatility and Application Range
Industry Uses of Unsaturated Polyester Resins
Polyester resin is used in many industries. It works well in lots of different jobs. The table below shows how each industry uses polyester:
Industry | Specific Benefits |
|---|---|
Marine | Durability and resistance to environmental factors for boat construction. |
Automotive | Ability to mold into complex shapes while maintaining structural integrity. |
Wind Energy | Suitable for manufacturing wind turbine blades due to strength and lightweight. |
Textile | Enhances fabric performance, making it resistant to wrinkles and shrinking. |
Coatings/Sealants | Provides protective layers that prolong the life of products like furniture. |
You can find polyester in boats, cars, wind turbines, and fabrics. It is also used on furniture as a coating. This shows that polyester resin is very useful.
Customization and Adaptability
You can change polyester resin to fit your project. This helps you get the right mix for what you need. Here are some ways you can make polyester resin work for you:
You can change the formula for your project.
You can use polyester resin in cars, planes, and buildings.
You can make parts that are strong, light, and last a long time.
Changzhou Polymer Composite Materials Co., Ltd gives you special solutions. You get a product that fits your needs.
Tip: Custom polyester resin helps you fix hard problems in your projects.
Compatibility with Manufacturing Methods
You can use polyester resin with many ways of making things. It works for filament winding, pultrusion, and hand lay-up. The table below shows the main parts that make this possible:
Component | Weight (parts by weight) |
|---|---|
Fumaric acid | 150 to 220 |
Neopentyl glycol | 180 to 200 |
Propylene glycol | 70 to 90 |
Reaction catalyst | 0.3 to 0.6 |
Styrene monomer | 400 to 450 |

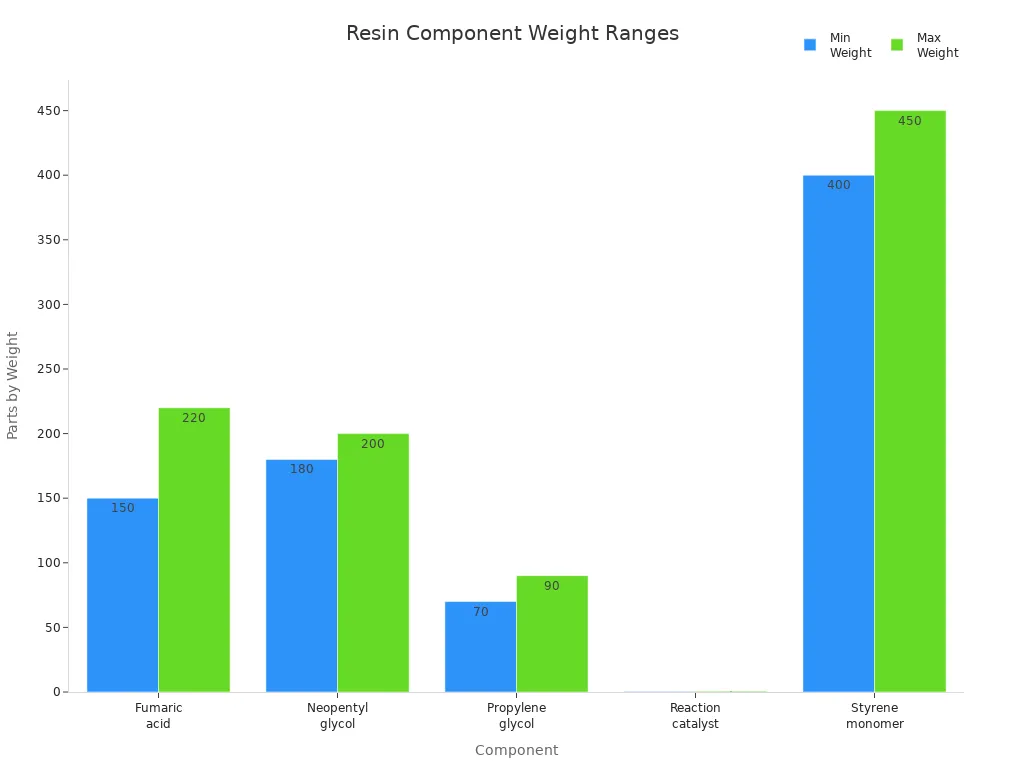

This mix lets you make pipes, panels, and other things. You can see how much of each part is used in the chart below:
You get more choices in how you make things. This makes polyester resin a smart pick for many jobs.
Environmental and Supply Chain Benefits
Lower VOC Emissions
You want to make strong things and help the earth. Unsaturated polyester resins help with this goal. These resins let out fewer volatile organic compounds (VOCs) than many old materials. This means the air in your work area is cleaner. It also helps keep the planet safe.
Unsaturated polyester resins give off less VOCs than older resins.
Fewer VOCs mean better air for you and your team.
Using these resins helps you follow tough environmental rules.
Some special polyester resins, like styrene-free ones, can lower styrene emissions by up to 30%.
Note: Picking low-VOC polyester resins helps your company be greener and keeps your projects safe for workers.
Reliable Supply and Quality Assurance
You need materials that come on time and work the same way each time. Changzhou Polymer Composite Materials Co., Ltd gives fast delivery and steady quality. The company uses a strict ISO system to check every batch of polyester resin. This means you can trust the resin to work well in every project.
Here are some ways the company checks quality:
Acid value shows if the reaction is finished.
Viscosity tells how easy it is to use the resin.
Gel time measures how fast the resin gets hard.
Solid content affects strength and chemical resistance.
Color shows how pure the resin is.
Reactivity with styrene makes sure the resin cures the right way.
You can trust these checks to give you good polyester resin with high strength for every order.
Sustainable Innovation
You want to use materials that last and help the earth. Polyester resins now use more renewable and recycled stuff. This change helps lower waste and keeps the future cleaner. New biobased polyester resins stay strong and tough while using less fossil fuel. You also see these resins in wind turbine blades and other green energy projects. This shows they help build a better world.
Changzhou Polymer Composite Materials Co., Ltd leads in making new and green polyester solutions. The company’s research team works on new ways to make resins that are strong and eco-friendly. You get products that help your business and the earth at the same time.
You get lots of good things when you pick unsaturated polyester resins. These resins are strong and can bend without breaking. They also help you save money. You can use them in many jobs and know they will last a long time. Changzhou Polymer Composite Materials Co., Ltd gives you UPR that works well and is always the same.
More people want unsaturated polyester resins that are better for the earth. This shows that the industry is moving toward being greener.
Sector | Projected Value/ Growth Rate |
|---|---|
UPR Market Value | $12.6 billion by 2026 |
Non-Styrene UPRs Growth | CAGR of 8-10% |
New studies make UPRs work better and be safer for nature.
Bio-based UPRs can help the planet and use less oil and gas.
You will see more new ideas and green choices in the resin world.
FAQ
What makes unsaturated polyester resin a good choice for my project?
You get materials that are strong and can bend. Unsaturated polyester resin lasts a long time. It works in many jobs like boats, cars, and buildings. You also save money and finish work faster.
Can I use unsaturated polyester resin with different manufacturing methods?
Yes! You can use it for filament winding, pultrusion, or hand lay-up. This resin works with many ways to make things. You have more choices for your project.
How does unsaturated polyester resin help the environment?
You use a resin that lets out less VOCs. This means the air is cleaner for you and your team. Some types use recycled or renewable materials. You help take care of the planet.
Does unsaturated polyester resin affect the performance of resin-based composites?
Yes. Using unsaturated polyester resin makes your composites better. Your products get stronger, bend easier, and last longer.
