High-Strength Filament Winding & Hand Lay-up Resin Overview

Engineered for maximum structural resilience and processing versatility, POLYMER’s premium filament winding resin for large pipes is the ultimate thermosetting matrix for heavy-duty composite manufacturing. As a leading hand lay up UPR resin manufacturer, we have precision-tailored this resin's viscosity to perfectly balance the rigorous demands of both automated continuous filament winding and intricate manual hand lay-up processes.

Exhibiting ideal moderate flow properties, this high strength FRP tank resin ensures rapid and thorough wetting of fiberglass reinforcements while effectively releasing trapped air. This void-free rapid wetting capability prevents delamination and pinholes, resulting in an exceptionally dense, crack-resistant composite structure. With a low-exothermic curing profile, it is the definitive structural resin for chemical pipelines, providing unmatched durability against outdoor weathering and corrosive media.

Empowering FRP Pipe & Tank Manufacturing

Whether you operate high-speed automated winding machines or contract massive municipal infrastructure networks, our dual-process resins secure your project's longevity:

• For Large-Diameter Pipe Fabricators: Leverage our low shrinkage UPR for filament winding to drastically improve production speed. Its low-exothermic properties are perfect for molding ultra-thick pipe walls without internal thermal stress fracturing.

• For Chemical Tank Contractors: Achieve superior structural density. Our crack resistant UPR composite matrix minimizes voids and delamination, ensuring zero leakage for large-scale liquid storage and municipal sewage reaction vessels.

• For Hand Lay-up Workshops: Utilize our moderate flow hand layup resin to execute complex laminating and troweling tasks. It will not run excessively on vertical surfaces nor pile up, drastically reducing manual labor time.

• For Regional Raw Material Distributors: Source directly from a verified bulk FRP pipe resin supplier in China. We offer bespoke OEM formulation adjustments, robust IBC export packaging, and highly competitive wholesale pricing.

Core Performance Advantages

High Strength & High Toughness

Exceptional mechanical elongation ensures structures absorb severe impacts, ground settling, and internal pressure surges without brittle fracturing.

Dual-Process Versatility

Highly versatile matrix engineered with ideal flow control, making it a cost-effective solution for both automated winding and manual laminating.

Void-Free Rapid Wetting

Rapid fiberglass saturation easily forces out trapped air bubbles, producing an incredibly dense, pinhole-free composite wall.

Low Exothermic Curing

Gradual heat release during polymerization entirely prevents internal warping or cracking, making it ideal for molding ultra-thick large-diameter pipes.

Liquid Resin Properties (Typical Values)

* Note: Gel time tested at 25℃ by adding 2.0 g accelerator and 2.0 g M-50 (AKZO-Nobel) to 100 g resin.

Cured Resin Properties (Typical Values)

Curing conditions: Room temperature curing for 24 hours, post-curing at 60℃ for 3 hours and at 100℃ for 2 hours.

Test conditions: Temp 23±2℃, RH 50±6%.

Filament Winding Resin Product Line

Typical Industrial Applications

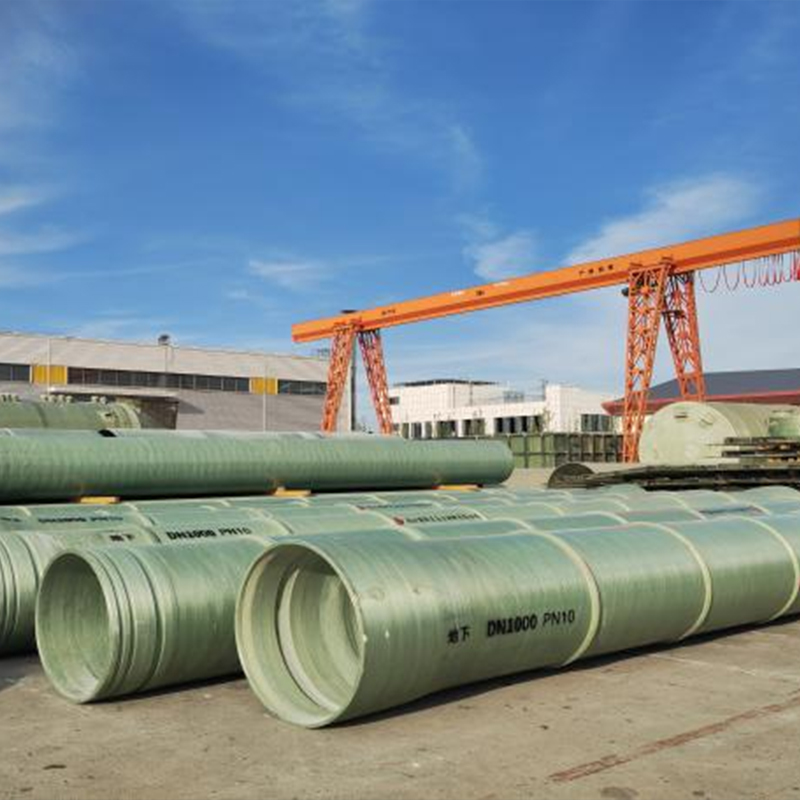

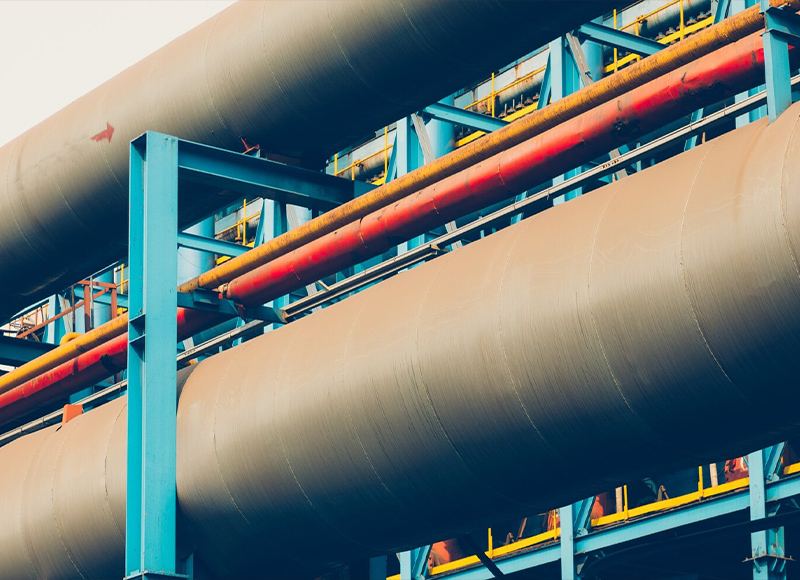

Large-Diameter Pipes

Structural resin for large diameter pipes ensuring massive hydraulic pressure tolerance for municipal water grids.

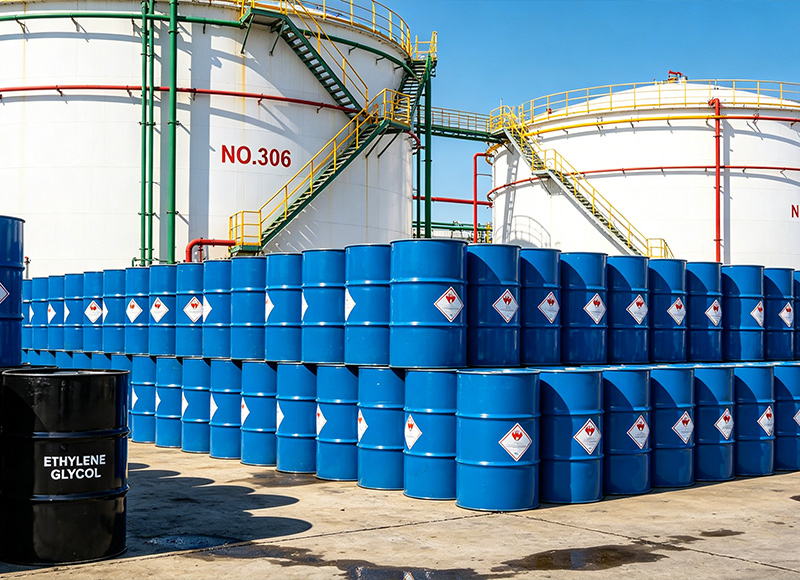

Heavy Storage Tanks

High toughness resin for storage tanks preventing brittle fractures and delamination in buried chemical vessels.

Frequently Asked Questions (FAQ)

Instructions for Use and Storage Conditions

Because tank/pipe wall thickness dramatically affects exothermic heat buildup, initiator dosages must be precisely calibrated. Always conduct pilot tests to fine-tune curing speeds before executing large-diameter winding or thick-wall hand layup operations.

Unsaturated polyester resins contain volatile styrene monomers. Store the product tightly sealed in its original IBC tanks or drums. Maintain the warehouse in a cool, dry, and well-ventilated condition strictly below 25°C to preserve ideal viscosity.

Elevated temperatures and direct exposure to natural sunlight will rapidly accelerate premature polymerization, drastically shortening shelf life. Keep drums far away from windows, heating vents, and industrial machinery.

Uncured unsaturated polyester resin is highly flammable. Ensure that winding and layup facilities possess robust exhaust ventilation and strictly prohibit open flames. Refer to the Safety Data Sheet (SDS) for detailed handling protocols.
