Flame Retardant SMC Sheet Molding Compound for Enclosures

PLM-6001 High gloss, high water resistance smc sheet molding compound for bathroom arts, vehicle parts

thumb PLM-6001 High gloss, high water resistance smc sheet molding compound for bathroom arts, vehicle parts

Electrical components used in indoor and outdoor environments, such as meter boxes, communication boxes, etc., meet the requirements of various electrical manufacturers for products.

Low shrinkage

Good surface gloss

Stable electrical performance

Good electrical flame retardancy

Antistatic

Model:PLM-6001

WhatsApp Now

Flame Retardant SMC Sheet Molding Compound Overview

POLEMA specializes in manufacturing high-performance flame retardant SMC sheet molding compound for various electrical applications. As a leading supplier of smc plastic material, our specialized sheet moulded compound is engineered to deliver outstanding insulation and weather resistance for outdoor smc meter box fabrication and heavy-duty industrial enclosures.

Product Specifications

Test items	Test Standards	Units	Measured properties of pressed products
Test items	Test Standards	Units	PLM SMC-6001	PLM SMC-5510	PLM SMC-5512
Shrinkage	ISO 2577	%	≤0.15	≤0.15	≤0.15
Density	ISO 1183	g/cm³	1.70~1.90	1.70~1.90	1.70-1.90
Tensile Strength	ISO R 527	MPa	≥40	≥50	≥70
Bending strength	ISO 178	MPa	≥130	≥135	≥180
Flexural modulus	ISO 178	GPa	≥8	≥8	≥8
Izod Impact Strength	ASTMD 256	kJ/㎡	≥35	≥40	≥70
Oxygen Index	GB/T 8924-2005	%	≥35	≥28	≥30
Dielectric strength	GB1408	KV/mm	≥20	≥20	≥20
surface resistance	GB1410	Ω	≤109	≥1012	≥1012
Application			Flame retardant/ antistatic, gas station maintenance wells	Flame retardant/ resistance, meter box	Flame retardant/ resistance, high strength

FAQ

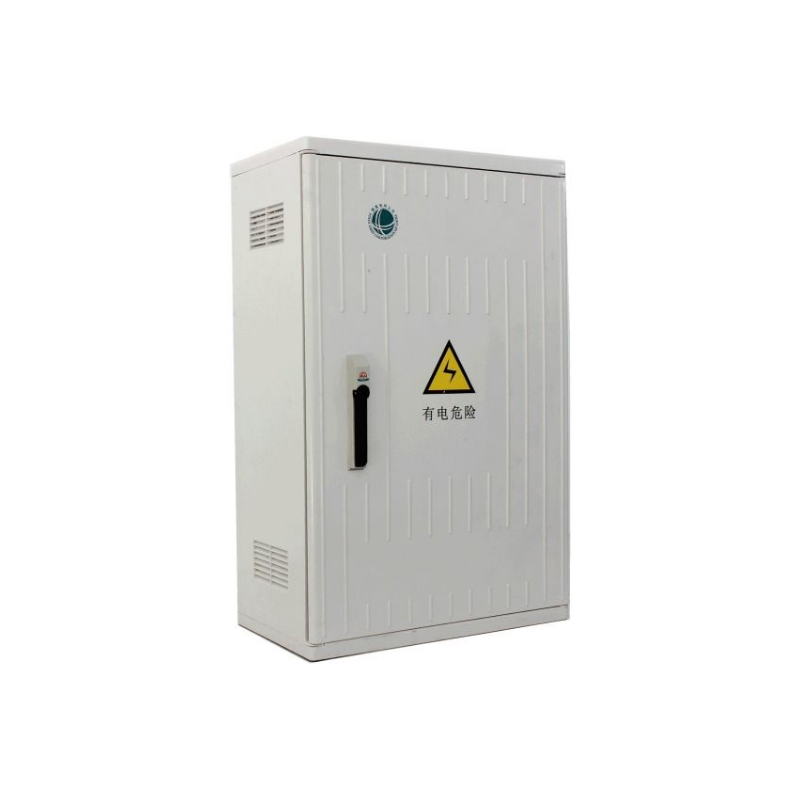

What is an SMC electricity meter box? What materials is it made of?

An SMC electricity meter box is a professional electrical equipment enclosure specially designed for installing and protecting electricity meters, switches, and wiring terminals. It is made of high-performance SMC (Sheet Molding Compound), which is a composite material composed of unsaturated polyester resin, glass fiber, low-shrinkage additive (LSA), flame-retardant additive and other auxiliaries, formed by high-temperature compression molding. It integrates excellent insulation, corrosion resistance and mechanical strength, and is widely used in indoor and outdoor power metering systems.

What are the core advantages of SMC electricity meter boxes compared with traditional metal (steel, iron) or ordinary plastic meter boxes?

Compared with traditional meter boxes, SMC electricity meter boxes have obvious comprehensive advantages, which are more suitable for complex power metering environments:
① Excellent insulation performance: It has high insulation resistance (1.0×10⁹ MΩ after soaking in water for 24h), no electric leakage, no need for grounding, and can effectively avoid electric safety hazards;
② Strong corrosion resistance: It can resist corrosion of acid, alkali, salt, seawater, rainwater and industrial chemicals, and is suitable for harsh environments such as coastal areas, chemical plants and high-salt fog areas, without rusting or aging;
③ Lightweight and high strength: The density is 1.5-2.0g/cm³, the weight of a single-meter box is ≤3.5kg (much lighter than the traditional metal box ≥8kg), and the tensile strength is close to or even exceeds that of steel, which is impact-resistant and not easy to deform;
④ Flame retardant and safe: The flame retardant grade reaches FV0 (UL94 standard), the oxygen index is ≥32%, it does not produce harmful gas when burning, and the smoke density and toxicity meet the safety standards;
⑤ Good weather resistance: It can adapt to the temperature range of -50℃ to 160℃, resist UV radiation, and will not fade, crack or deform after long-term outdoor use, with outdoor service life up to 20-40 years;
⑥ Excellent anti-theft performance: It is equipped with a triple anti-theft protection system, which is not easy to be pried open, and meets the safety management requirements of power departments;
⑦ High dimensional stability: The shrinkage rate is low, the structure is tight, and it has good sealing performance, with protection grade up to IP44-IP54, effectively preventing dust, water and small animals from entering.
