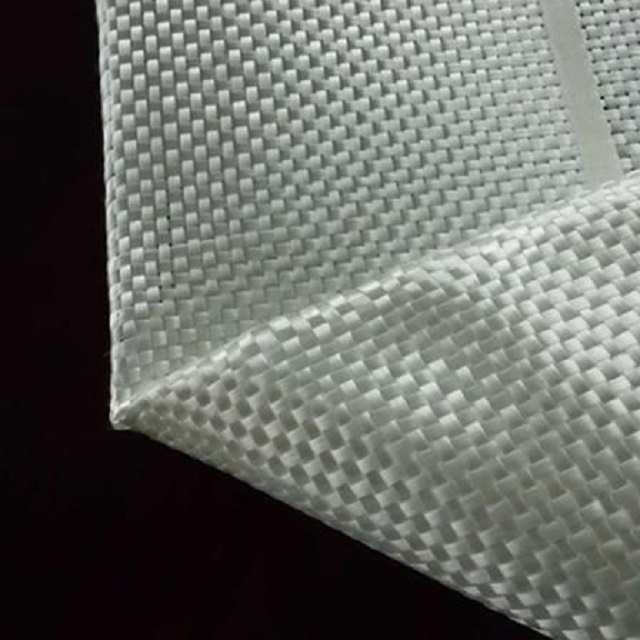

E-Glass Woven Roving Overview

Setting the global standard for fundamental composite reinforcement, POLYMER's E-glass woven roving is a heavy-duty, bidirectional fiberglass cloth engineered for extreme structural integrity. As a premier fiberglass woven roving manufacturer, we meticulously weave continuous E-glass direct rovings into a robust fabric. Treated with our proprietary no-paraffin sizing, this material guarantees exceptionally rapid resin wet-out and creates a flawless mechanical bond within the laminate.

Universally recognized for its immense tensile strength and high impact resistance, this heavy duty fiberglass woven roving is inherently flame-retardant and highly resistant to chemical corrosion. Exhibiting perfect compatibility with Unsaturated Polyester (UP), Vinyl Ester, and Epoxy systems, it serves as the ultimate structural foundation. It is extensively specified as the primary E-glass woven roving for boat building, large-scale chemical storage tanks, automotive body parts, and heavy-duty FRP architectural panels.

Empowering Heavy-Duty Composite Fabrication

Whether you are laying up massive marine hulls or winding high-pressure chemical pipes, our engineered woven roving secures your structural integrity and production efficiency:

• For Marine Boat Building: Leverage our marine grade fiberglass woven roving. The heavy basis weight (up to 800g/m²) allows fabricators to rapidly build massive laminate thickness and extreme impact resistance in luxury yacht hulls and commercial vessel decks.

• For Chemical Tanks & Pipes: Deploy our high tensile strength woven roving in filament winding or hand lay-up processes. The robust E-glass formulation provides exceptional hoop strength and profound resistance to acidic and alkaline environments.

• For Complex Molds & Auto Parts: Utilize our twill weave fiberglass woven roving. The twill construction offers superior drapeability and conformability compared to plain weaves, allowing it to lay perfectly flat over complex curves in automotive housings.

• For Regional Raw Material Distributors: Source directly from a verified bulk E-glass woven roving roll supplier. We offer customizable weights (from 250g to 800g), custom slit widths, and highly competitive factory-direct export pricing.

Core Performance Advantages

Massive Tensile Strength

Engineered with high-grade E-glass rovings, the tight bidirectional weave delivers exceptional tensile strength and superior impact resistance for heavy-duty structural parts.

Ultra-Fast Wet-Out

Treated with an advanced, no-paraffin silane sizing, the fabric rapidly absorbs Polyester, VE, and Epoxy resins, slashing manual lay-up time and preventing dry spots.

Superior Drapeability (Twill)

The specialized twill weave construction allows the heavy fabric to conform flawlessly to complex, curved molds without wrinkling, unlike stiffer plain weave alternatives.

Cost-Effective Thickness

Available in heavy area weights (up to 800g/m²), woven roving is the most economical way to rapidly build structural laminate thickness in large-scale FRP manufacturing.

General Data & Technical Specifications

* Remarks:
1. Specifications are tested according to standard JC/T170-1996.
2. The highest softening temperature ranges from 550°C to 750°C.
3. Higher weights (e.g., EW600, EW800), Plain weaves, and custom widths are readily available upon request.

Typical Industrial Applications

Marine Boat Building

E-glass woven roving for boat building utilized to lay up extremely rigid, impact-resistant hulls for marine vessels.

Industrial Tanks & Pipes

High tensile strength woven roving delivering extreme burst resistance and anti-corrosion properties for chemical storage.

Automotive Parts

Twill weave fiberglass woven roving offering superior conformability for molding complex aerodynamic car body panels.

Architectural FRP Panels

Heavy-duty woven roving utilized in hand lay-up to build highly durable, flame-retardant structural panels for construction.

Frequently Asked Questions (FAQ)

Why Partner with POLYMER?

Instructions for Roll Handling & Storage

Custom Slit Widths: The standard roll width is 100cm. Custom widths ranging from 200mm to 3200mm can be seamlessly manufactured based on your exact mold dimensions or pipe winding requirements.

Packing & Palletizing: The E-glass woven roving is tightly rolled onto a 76mm ID paper tube to maintain the integrity of the weave. It is securely wrapped with moisture-proof plastic film, and carton-packed for safe horizontal palletizing.

Storage Conditions: Store indoors in a cool, dry, and water-proof environment. Ideal room temperature is 15°C to 35°C with 35% to 65% humidity. Avoid moisture absorption before lay-up to ensure optimal resin wet-out.
