Weatherproof Isophthalic Resin for PV Profiles

thumb Weatherproof Isophthalic Resin for PV Profiles

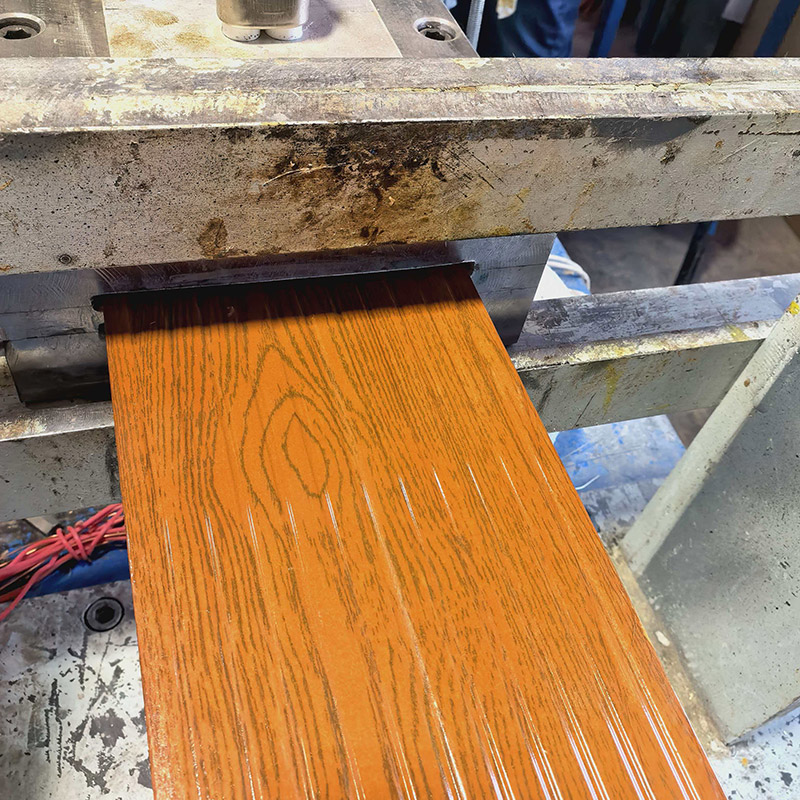

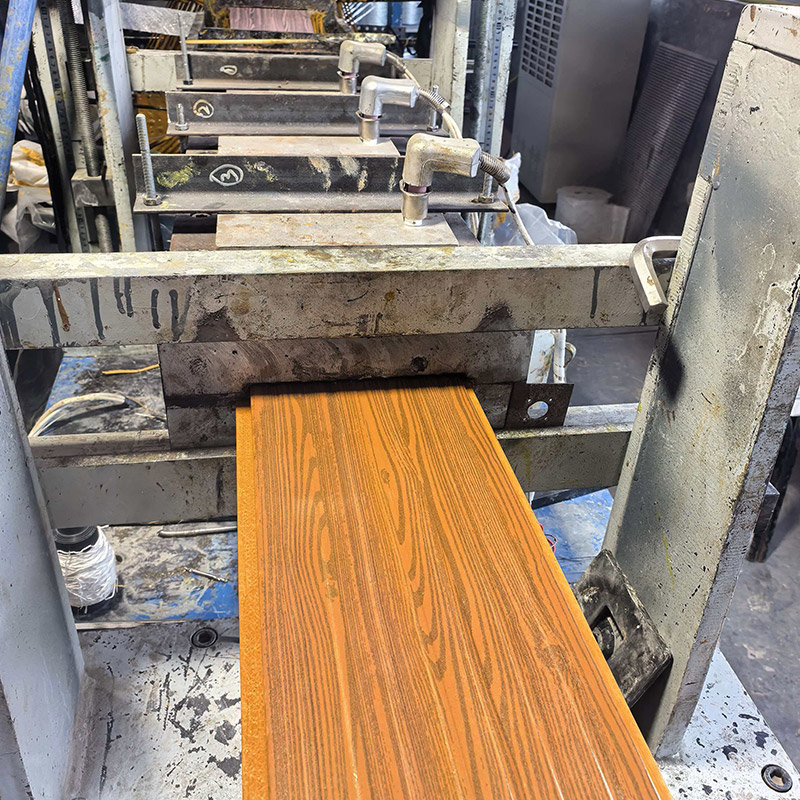

This product is an unsaturated polyester resin specifically formulated for pultrusion applications. A pure isophthalic-type resin, it is designed expressly for continuous pultrusion processes, featuring rapid fiber wet-out, uniform curing, low shrinkage, and excellent processing stability. It is perfectly suited for the continuous, high-speed production of FRP profiles, angle bars, channel beams, I-beams, and similar structural components.

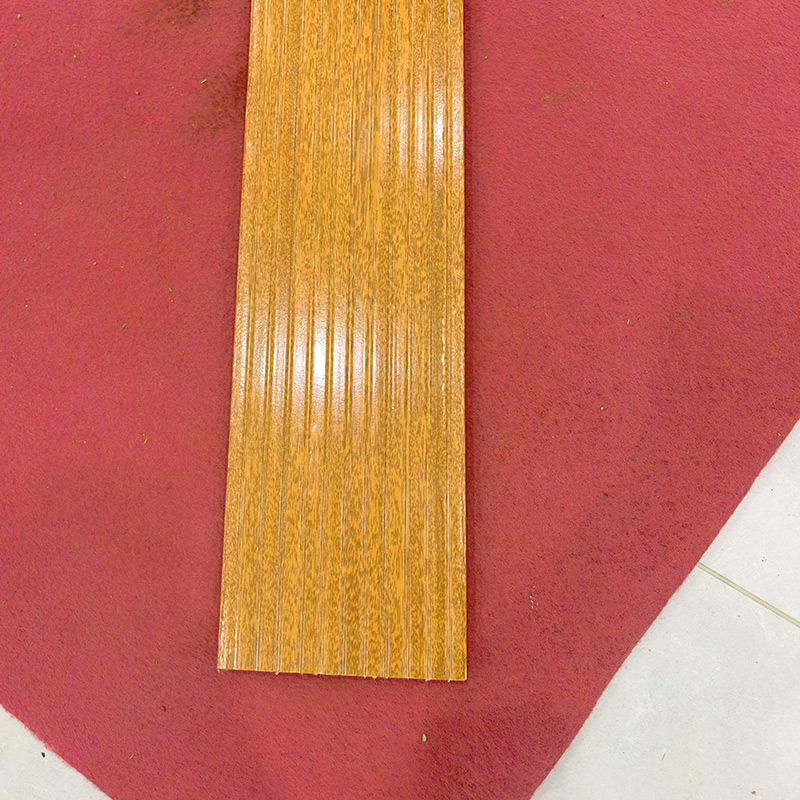

Products molded from this resin exhibit high mechanical strength, superior toughness, high dimensional accuracy, and a smooth surface finish. Furthermore, they possess excellent weather resistance, corrosion resistance, and electrical insulation properties, ensuring that they remain free from deformation or cracking even after prolonged use.

Rapid Curing

Low Shrinkage

Good Wettability

High Strength

High Modulus

Model:PLM-202

WhatsApp Now

Weatherproof Isophthalic Resin Overview

PLM-202 by POLEMA is a premium weatherproof isophthalic resin specifically formulated for PV profiles and outdoor municipal infrastructure. As a pure 100% isophthalic resin, it offers low curing shrinkage and superior mechanical toughness, making it perfectly suited for high-speed pultrusion applications.

Weatherproof Isophthalic Resin Core Performance Advantages

100% Isophthalic Resin

Low Shrinkage and Dimensional Stability

Resists deformation during molding, features tight tolerances, and yields profiles with a straight, smooth finish.

Superior Mechanical Properties and Weather Resistance

Offers high strength and excellent toughness, along with exceptional resistance to corrosion and aging, making it suitable for a wide range of applications.

Resin Casting Properties (Typical Values)

Properties	Value	Unit	Test Standard
Tensile Strength	70	MPa	GB/T 2567
Tensile Modulus	3300	MPa	GB/T 2567
Elongation at Break	3.0	%	GB/T 2567
Flexural Strength	110	MPa	GB/T 2567
Flexural Modulus	3800	MPa	GB/T 2567
Impact Strength	15	kJ/m²	GB/T 2567
Heat Deflection Temperature	80	°C	GB/T 1634
Barcol Hardness	46	—	GB/T 3854

Curing conditions: Room temperature curing for 24 hours; post-curing at 40 °C, 60 °C and 80 °C for 2 hours respectively.
Test conditions: 23±2 °C, relative humidity 50±6 %

Liquid Resin Properties (Typical Values)

Properties	Value	Unit	Test Standard
Shelf Life (uninitiated, dark place)	3	months	—

Weatherproof Isophthalic Resin Specifications

Properties	Range	Unit	Test Standard
Appearance	Light yellow transparent	—	GB/T 8237
Viscosity at 25 °C	460–840	mPa·s	GB/T 7193
Acid Value	10–18	mgKOH/g	GB/T 2895
Solid Content	58–64	%	GB/T 7193
Gel Time at 80 °C	3.8–7.2	minutes	GB/T 7193

Note: 1.0g BPO paste added into 100g resin.

Item No	Chemical Category	Viscosity	Gel Time	Solid Content	Tensile Strength	Flexural Strength	Heat Deflection Temperature	Application	Feature Description
PLM-106	Terephthalic	400-700	2.5-5	65	60	105	80	Pultruded profiles	High heat resistance
PLM-1002	Orthophthalic	600-900	2.5-4.6	61-69	60	102	72	Pultruded profiles	Universal
PLM-3016	Orthophthalic	500-800	2.5-4.6	61-69	70	115	82	Pultruded profiles	High modulus High strength High toughness
PLM-3017	Orthophthalic	420-800	2.5-4.6	61-69	70	115	78	Tent poles mosquito net poles	High modulus High strength High toughness
PLM-202	Isophthalic	460-840	3.8-7.2	58-64	70	110	80	Pultruded profiles	High Gloss High Strength
PLM-411	Bisphenol A	300-500	8-14	53-59	75	125	105	Pultruded profiles	High heat resistance High strength High toughness

Application

电气绝缘件

Electrical Insulation

Municipal Guardrails

PV Mounting Structures

Architectural Profiles

FAQ

Storage Conditions, Shelf Life, Storage Stability, Separation/Crystallization, and Usability After Opening?

Storage Environment: Store in a cool, well-ventilated warehouse away from direct light, at a temperature of 5–25°C. Keep away from heat sources, open flames, strong oxidizing agents, and UV radiation.
Shelf Life (in Original, Sealed Container): 3 months.
Storage Stability: The formulation is stable; under normal storage conditions, it is resistant to separation, crystallization, or precipitation. Avoid exposure to high temperatures, direct sunlight, or freeze-thaw cycles.
After Opening: The container must be promptly resealed to prevent exposure to air. It is recommended to use the product within 30 days of opening; prolonged exposure to air will result in increased viscosity, accelerated gelation, diminished performance, and styrene volatilization.

Instructions for Use and Storage Conditions

When PLM-202 resin is used in pultrusion process, the curing system should be selected according to specific equipment, products, process temperature, pultrusion speed and other factors. 2. During application, control the moisture content of glass fiber, fillers, pigment paste and other raw materials. Ensure good compatibility between pigment paste and unsaturated polyester resin.
