Weather Resistant Clear Polyester Resin for Tiles

PLM-1010B High transparency high strength high duration polyester unsaturated resin for tile or corrugated sheet

thumb PLM-1010B High transparency high strength high duration polyester unsaturated resin for tile or corrugated sheet

This product is a specialized unsaturated polyester resin, specifically formulated for use in polyester corrugated sheets, flat skylight panels, and transparent or translucent decorative sheeting. It features rapid curing, low shrinkage, high mechanical strength, and excellent weather resistance, making it compatible with mainstream sheet manufacturing processes such as continuous molding, hand lay-up, and spray-up.

High Strength

Non-yellowing

Fast Curing

Easy to Color

Long Lifespan

Model:PLM-1010B

WhatsApp Now

Clear Polyester Resin Overview

Characterized by its strong process adaptability, operational stability, minimal bubble formation, and high yield rate, this resin can be effectively utilized in conjunction with systems incorporating glass fibers, fillers, and color pastes. Offering high molding efficiency, it serves as an ideal matrix material for the production of industrial-grade corrugated and flat sheet products.

PLM-1010B by POLEMA is a professional-grade weather resistant clear polyester resin specifically customized for continuous automated lines manufacturing translucent roofing tiles and skylight panels. As a leading clear polyester resin manufacturer, we deliver this high-transparency, low-shrinkage formulation with exceptional UV resistance to ensure warp-free, non-yellowing profiles for global infrastructure and industrial day-lighting projects.

Clear Polyester Resin Core Performance Advantages

High cost-effectiveness

Well-suited for infrastructure markets in Southeast Asia.

Rapid curing and stable molding

Features high gelation and curing efficiency, making it compatible with continuous production lines; results in minimal air bubbles and a high yield rate.

Low shrinkage and flat surface finish

Exhibits a low curing shrinkage rate, ensuring the panels remain free of warping or rippling, with excellent surface smoothness.

Superior mechanical properties

Possesses high strength and excellent toughness, offering strong impact resistance and resistance to brittle fracture; remains free from deformation even after prolonged use.

Weather and aging resistance

Withstands exposure to sunlight and rain while resisting yellowing; offers a long service life, making it ideal for long-term outdoor applications.

Liquid Resin Properties

Property	Range	Unit	Test Standard
Appearance	Pale yellow transparent	—	—
Viscosity at 25℃	300 – 450	mPa·s	GB/T 7193
Acid value	16 – 24	mgKOH/g	GB/T 2895
Solid content	63 – 69	%	GB/T 7193
Thermal stability at 80℃	≥24	h	GB/T 7193
Gel time at 25℃	10 – 15	minutes	GB/T 7193
Exothermic peak	180 – 190	℃	GB/T 7193

Gel time test: Water bath at 25℃; add 1.0 g T-8M (1% Co) and 1.0 g M50 (AKZO-Nobel) to 50 g resin.

Typical Cast Resin Properties

Property	Typical Value	Unit	Test Standard
Appearance	No defects in casting	—	—
Tensile strength	60	MPa	GB/T 2567
Tensile modulus	2800	MPa	GB/T 2567
Elongation at break	5.0	%	GB/T 2567
Flexural strength	100	MPa	GB/T 2567
Flexural modulus	3000	MPa	GB/T 2567
Compressive strength	180	MPa	GB/T 2567
Compressive modulus	3300	MPa	GB/T 2567
Heat distortion temperature	70	℃	GB/T 1634
Barcol hardness	35	—	GB/T 3854

Typical FRP Properties

Property	Value	Unit	Test Standard
Tensile strength	330	MPa	GB/T 1447
Tensile modulus	16000	MPa	GB/T 1447
Flexural strength	380	MPa	GB/T 1449
Flexural modulus	18000	MPa	GB/T 1449
Hardness	67	—	GB/T 3854

Item No	Chemical Category	Viscosity	Gel Time	Solid Content	Tensile Strength	Flexural Strength	Heat Deflection Temperature	Application	Feature Description
PLM-1010B	Orthophthalic	120-350	9-13	57-64	65	112	78	Corrugated sheet, tile	High transparency High strength Temperature-resistant
PLM-2020B	Orthophthalic	120-300	7-14	57-64	60	115	75	Corrugated sheet, tile	High transparency High strength Temperature-resistant

Clear Polyester Resin Application

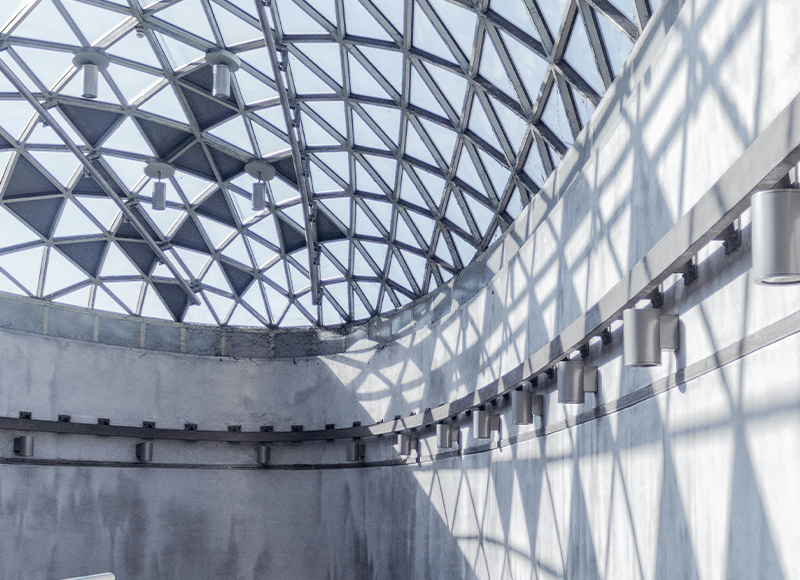

Architectural Daylighting

Roof Enclosure

Decorative Enclosures

FAQ

What type of resin is 1010B?

It is a high-weather-resistance, isophthalic-type unsaturated polyester resin. It is specifically customized for automated production lines manufacturing translucent roofing tiles, transparent FRP flat sheets, and corrosion-resistant lighting panels. It features high transparency, low shrinkage, and resistance to yellowing, making it ideally suited for continuous automated manufacturing lines.

How are the hardness, toughness, and impact resistance of the panels?

The material strikes an optimal balance between rigidity and toughness. It offers excellent resistance to hail and wind pressure, and is highly resistant to brittle fracture under everyday impact, making it suitable for outdoor roofing applications.

Instructions for Use and Storage Conditions

PLM- 1010B resin contains no accelerator, wax or thixotropic agent.
PLM- 1010B resin has moderate reactivity. To ensure product performance, the line speed shall be set accordingto actual equipment and process conditions.
PLM- 1010B resin is suitable for continuous molding panels and general light- transmitting panels.

Before use, store the resin in its original package (avoid opening or damaging the drum) in a dry indoor area below 25℃.

Elevated temperature and light exposure will significantly shorten the shelf life. Keep away from direct sunlight and heat sources during storage.

Unsaturated polyester resin containing styrene is flammable. Keep away from open flames during storage. Refer to the Safety Data Sheet (SDS) for details.
