Flame Retardant SMC Sheet Moulding Compounds for Rail

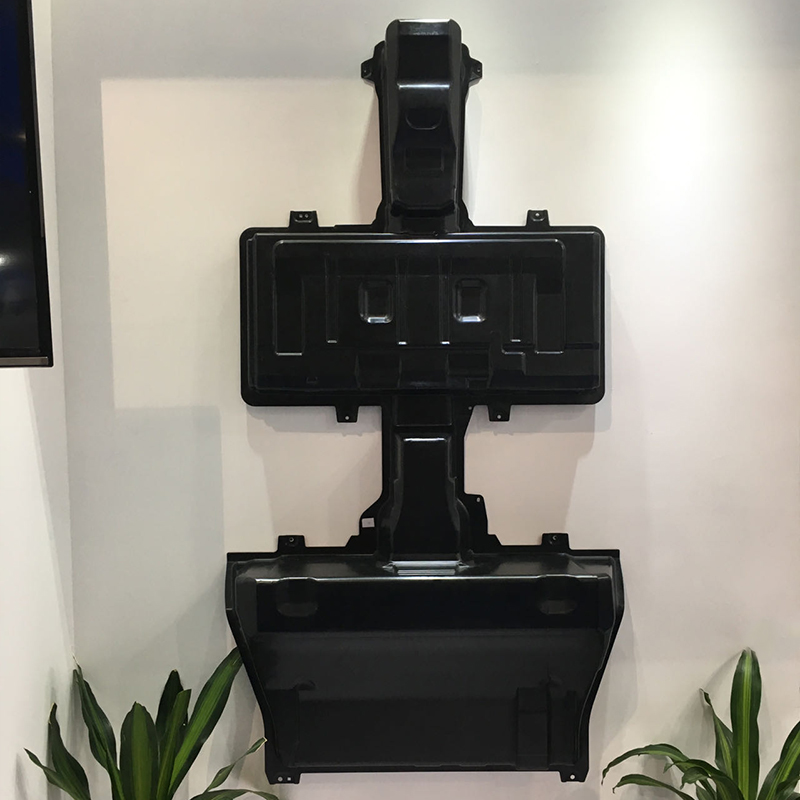

PLM-1001 SMC (Sheet Molding Compound) for Rail Transit

Flame Retardant SMC Sheet Moulding Compounds for Rail

Engineered to meet the rigorous safety and mechanical demands of modern rail transit, this premium flame retardant SMC composite material is specifically formulated for heavy-load structural components.

Optimized for enclosed train environments, this advanced low smoke zero halogen SMC resin guarantees maximum passenger safety. It is the ultimate matrix for manufacturing dimensionally stable interior compartments, modular train washrooms, and high-voltage equipment protection shells, delivering both structural integrity and a flawless aesthetic finish.

Heavy-Load Structural Strength

Zero-Warp Dimensional Precision

Flawless Surface Aesthetics

Water & Stain Repellent

Low Smoke Flame Retardancy

Model:PLM-1001

WhatsApp Now

SMC Sheet Moulding Compounds for Rail Overview

PLM-1001 smc resin by POLYMER is a certified, high-performance flame retardant SMC sheet moulding compound explicitly engineered for the stringent safety demands of the global rail transit industry. As a premier manufacturer of SMC sheet moulding compounds for rail, we formulate these advanced matrices to deliver uncompromising structural integrity for heavy-load components and enclosed train interior environments.

Tailored for high-temperature compression molding, this specialized low smoke zero halogen SMC resin boasts a near-zero shrinkage rate (≤0.01%) alongside exceptional Izod impact strength (≥60 kJ/㎡). Compliant with critical UL and DIN railway fire safety standards, our lightweight SMC composite is the definitive solution for fabricating durable, passenger-safe transit compartments, seating, and high-voltage electrical enclosures.

Empowering Transit Manufacturing & Infrastructure

Whether you are molding high-speed rail interiors or supplying lineside electrical infrastructure, our specialized rail SMC materials secure your competitive advantage:

For Rail Component Fabricators: An optimized zero shrinkage SMC molding compound that guarantees flawless dimensional stability for large, flat panels (like wall walls and ceilings), eliminating costly post-molding corrections and ensuring perfect assembly fitment.
For Transit OEMs & Engineers: Achieve aggressive weight-reduction targets. This high strength structural SMC compound offers a superior strength-to-weight ratio compared to aluminum or steel, significantly lowering train energy consumption without sacrificing crashworthiness.
For Global Raw Material Distributors: Partner directly with a certified bulk SMC molding material supplier in China. We offer formulation customization to meet localized rail fire standards (e.g., DIN 5510, EN 45545), backed by robust mass-production capacity.

Core Performance Advantages

Certified Rail Flame Retardancy

Strictly tested to meet UL and DIN railway fire standards, featuring high oxygen index (≥36%) and ultra-low smoke toxicity for passenger safety.

Zero-Warp Dimensional Stability

Advanced formulations achieve a near-zero shrinkage rate (≤0.01%), ensuring flawlessly flat surfaces for large train interior panels and doors.

Heavy-Load Structural Strength

Delivers exceptional flexural strength (≥170 MPa) and Izod impact toughness, easily absorbing high-speed transit vibrations and mechanical stress.

Advanced Transit Lightweighting

Significantly lighter than traditional metals (Density 1.7-1.9 g/cm³), enabling critical weight reduction to maximize energy efficiency in rail networks.

Technical Information (Customizable Formulas)

Test items	Test Standards	Units	Measured properties of pressed products
Test items	Test Standards	Units	PLM SMC-4608	PLM SMC-4401	PLM SMC-4405
Shrinkage	ISO 2577	%	≤0.08	≤0.01	≤0.12
Density	ISO 1183	g/cm³	1.70~1.90	1.70~1.90	1.70-1.90
Tensile Strength	ISO R 527	MPa	≥70	≥65	≥70
Bending strength	ISO 178	MPa	≥150	≥140	≥170
Flexural modulus	ISO 178	GPa	≥8	≥8	≥8
Izod Impact Strength	ASTMD 256	kJ/㎡	≥60	≥50	≥50
Oxygen Index	GB/T 8924-2005	%	≥35	≥36	≥30
Application			UL\DIN certified	Zero shrinkage	High strength

Typical Rail Transit Applications

Train Interior Components

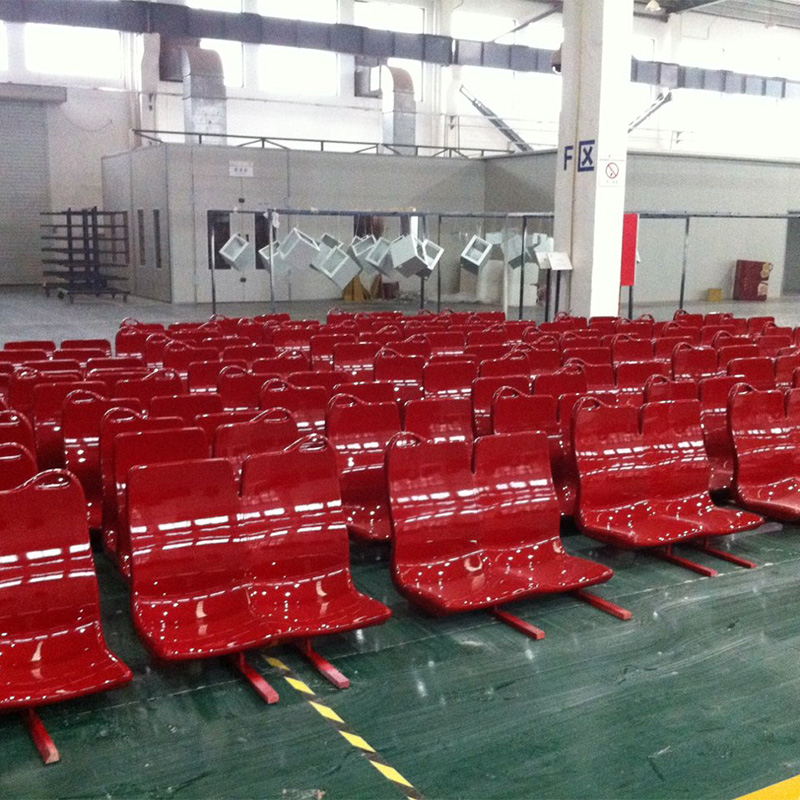

Train interior SMC sheet material for crafting lightweight passenger seats, ceiling panels, window frames, and modular washbasins.

Electrical & Traction Systems

Railway electrical enclosure SMC offering critical dielectric insulation for battery boxes, cable troughs, and control cabinets.

Trackside Infrastructure

Weather-resistant composite structures for return rail supports, signal responder enclosures, and lineside manhole covers.

Frequently Asked Questions (FAQ)

+ What is an SMC rail transit part? What core components does it consist of?

An SMC rail transit part is a high-performance thermosetting composite component specially developed for the rail transit industry. It is formulated from unsaturated polyester (or epoxy) resin, glass fiber (content 30%-50%), low-shrinkage additives (LSA), flame-retardants, and anti-aging agents, formed by high-temperature compression molding. It integrates the advantages of being lightweight, high-strength, perfectly insulated, flame retardant, and weather-resistant, providing safe and reliable support for rail operations.

+ What are the common application scenarios of SMC parts in the railway industry?

SMC sheet moulding compounds for rail cover multiple core scenarios:
① Vehicle interior/exterior: Window frames, carriage wall panels, ceilings, seats, and modular washbasins.
② Electrical systems: Cable troughs, control cabinets, battery boxes, and traction system enclosures.
③ Track lineside: Return rail supports, signal enclosures, cable brackets, and manhole covers.
④ Special functional parts: Anti-collision components, sound insulation panels, and vibration-damping brackets for high-speed rail, subway, and tram networks.

+ Why is "Low Smoke Zero Halogen" flame retardancy critical for trains?

In the enclosed environment of a train compartment, fire safety is paramount. Our low smoke zero halogen SMC resin is engineered to meet strict international standards (like DIN 5510 and EN 45545). In the event of a fire, it drastically limits the spread of flames, achieves a high oxygen index (≥36%), and critically, prevents the emission of thick, toxic smoke—ensuring passengers have clear visibility and safe breathing air during evacuation.

+ How does SMC contribute to rail transit lightweighting initiatives?

Our lightweight SMC composite has a density of just 1.70-1.90 g/cm³—roughly one-quarter the weight of steel and lighter than aluminum—while maintaining comparable tensile and flexural strength. By replacing heavy metal panels with our high strength structural SMC compound, train manufacturers can drastically reduce overall vehicle weight. This leads to higher speeds, lower power grid consumption, reduced track wear, and significantly lower operational costs.

Ready to Upgrade Your Rail Component Manufacturing?

Connect directly with our factory engineering team for an Instant Quote, customized technical data sheets, or to request free material samples for your compression molding trials. As a direct manufacturer, we guarantee reliable international shipping and uncompromised quality control.
